Star Laser Machine
WER-1080( industrial laser cutter)
This industrial laser cutter is one of the best cheap laser engraver, affordable price, easy to use, high quality, to bring customers more revenue.
Product Specification:- Machine size : 1450*1140*980mm
- Machine color : Grey-yellow
- Working area : 1000*800mm
- Engraving thickness : 2mm(depends on material)
- Cutting thickness : 2cm(depends on material)
These Machine accessories May you like
-
RUIDA V8 CONTROL SYSTEM
Voiern industrial laser cutter have powerful processing functions, visual operation and easy to learn , can meet almost all customer processing requirements.
-
INDUSTRIAL LASER HEADThe laser head of best cheap laser engraver enclosed jet design protects the lens from dust and keeps the lens highly translucent.
-
HIGH-SPEED MOTORS
With 57 stepper motors, the engraving speed of industrial laser cutter can reach 1000mm/s and the cutting speed can reach 500mm/s.
-
H-Q GUIDE LINEAR RAIL
Voiern industrial laser cutter have stainless steel guide rail, moving slider bearing design, smaller friction coefficient, higher precision, faster operation with 57 motor.
-

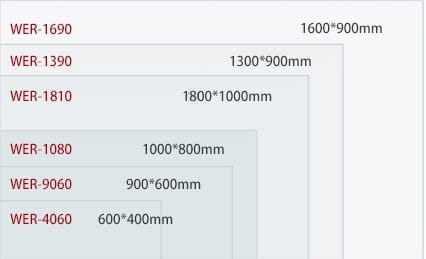

OPTIONAL WORKING AREA
From 400mm*600mm to 900*1600, it meets the requirements of various sizes of materials for the job format.
-
FRONT AND REAR MATERIAL DESIGN
Voiern industrial laser cutter remove the size limit of the processed material, so that the length of the material is increased to an infinite length.
-
HEIGHTENING MACHINE BOX
Industrial laser cutter increase the height of the Z axis to meet the height requirements of materials such as large volume and shape.
-

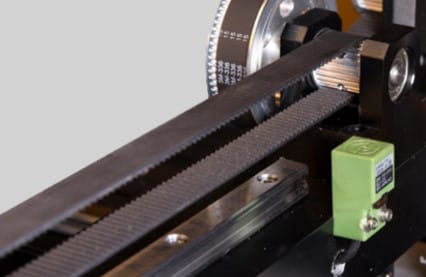

3M CONVEYOR BELT
The famous brand conveyor belt be used in industrial laser cutter guarantees a longer service life. the high quality belt has less stretching and deformation so that the operation accuracy is not affected.
-
AIR BLOWING
It can protect the lens from smoke pollution, ensure light transmission, remove excess heat and impurities, and prevent or reduce the possibility of scorch.
-
IMPORTED LENSES
Voiern industrial laser cutter uses High-Quality imported lenses ensure more precise beam focusing, finer beam and longer life.
-
LASER TUBE
Voiern industrial laser cutter uses laser tubes of famous brand like RECI ,WEIJU , EFR ensures the stability of the light source and service life.
-
VARIABLE STARTING
The RD V8 system sets a variable starting point for work, allowing you to work at any point within the working area.
| TYPE | WER-6040 | WER-9060 | WER-1080 | WER-1390/1690 |
| Machine size | 1400*790*980mm | 1400*980*980mm | 1450*1140*980mm | 1850*1310*1125mm/2150*1430*1125mm |
| Machine color | Blue-White, Gray-Yellow | |||
| Working area | 600*400mm | 900*600mm | 1000*800mm | 1300/1690*900mm |
| Engraving thickness | 2mm (depends on material) | 2mm(depends on material) | 2mm(depends on material) | 2mm(depends on material) |
| Cutting thickness | 2cm(depends on material) | 2cm(depends on material) | 2cm(depends on material) | 2cm(depends on material) |
| Engraving speed | 1-1000mm/s | 1-1000mm/s | 1-1000mm/s | 1-1000mm/s |
| Cutting speed | 1-500mm/s | 1-500mm/s | 1-500mm/s | 1-500mm/s |
| Laser power | 60w/80w/100w | 60w/80w/100w | 60w/80w/100w/1350w/150w | 60w/80w/100w/1350w/150w |
| Laser type | sealed CO2 laser tube | sealed CO2 laser tube | sealed CO2 laser tube | sealed CO2 laser tube |
| Cooling mode | water cooling protection system | water cooling protection system | water cooling protection system | water cooling protection system |
| Water protection | yes | yes | yes | yes |
| Positioning way | red light positioning | red light positioning | red light positioning | red light positioning |
| Locating precision | <=0.01mm | <=0.01mm | <=0.01mm | <=0.01mm |
| Working platform | Honeycomb | Honeycomb | Honeycomb/Blade platform | Honeycomb/Blade platform |
| Lift range | 0-250mm | 0-250mm | 0-250mm | 0-350mm |
| Power supply | AC220V/110V 50HZ | AC220V/110V 50HZ | AC220V/110V 50HZ | AC220V/110V 50HZ |
| Net weight | 120kg | 180kg | 200kg | 380kg/420kg |
| Package | Standard plywood case | Standard plywood case | Standard plywood case | Standard plywood case |
| System environment | WindowXP/win7/8/10 | WindowXP/win7/8/10 | WindowXP/win7/8/10 | WindowXP/win7/8/10 |
| Control software | Coreldraw/RUIDA V8 | Coreldraw/RUIDA V8 | Coreldraw/RUIDA V8 | Coreldraw/RUIDA V8 |
| Material | Engraving | Cutting |
| Acrylic | √ | √ |
| wood | √ | √ |
| bamboo | √ | √ |
| glass | √ | |
| leather | √ | √ |
| paper | √ | √ |
| rubber | √ | √ |
| textile | √ | √ |
| plastic | √ | √ |
| metal | ||
| stone | √ | |
| ceramic | √ |
FAQ of industrial laser cutter best cheap laser engraver
1. Connect computer to industrial laser cutter with date lines but it does not work.
A. Check the date lines, do not use long date lines.
B.Check the USB port. It works or not.
C. Check the date line and Softdog. make sure they all are plugged into computer.
2. Engraving depth of industrial laser cutter is not uniform.
A. Close the machine and after 1 hour start it check if there is water in water pipe.
B. Check the light path, and adjust it( refer to vedio of adjusting light ).
3. Turn on the switch of industrial laser cutter, but is does not work.
A.Check the power lines, it is connecting or not.
B. Check the scram button, make sure it is closed.
4. The carving depth of industrial laser cutter is too shallow.
A. Adjust the light path to make sure the light is at the center.
B. Check the lens, and make sure they are clean.
5.Engraving blurred image of best cheap laser engraver.
A:Put the focusing mirror back or wrong focusing length. You should square the lens. Adjust to the specified
focal length.
6. Industrial laser cutter has spark.
A:Poor electrical contact, or the air is too damp.You should connect the wire, clean the dust, keep air ventilate
and dry.
7. Engraving dislocation or stop engraving.
A:Electrostatic interference with the motherboard or signal transmission error. You should install and check the
ground wire, update the data cable or change the computer.
8.The laser head of best cheap laser engraver not has light.
There are 4 points to be check:
(1) Check electric current. Press“TEST”button on machine screen board.If there is not electric current showed
on screen board, you should try to make sure all wires are connected well. If there is electric current showed
on screen board, maybe the lens is broken,laser tube light exit and lens are contaminated. Or the light path
offset.
(2) Check water cycle. If there is not water cycle, maybe the water pump damage. If there is water cycle, please
check whether the inlet and outlet are connected in reverse, or pipe fractures.
(3) If a dot emit light. If there is not a light,please check the wire between the engraving machine control board
and the power supply is in good contact.
(4) If above is no problem, maybe machine power damages, you should repair it.
More about industrial laser cutter best cheap laser engraver please contat to us
